Hyundai Kona (OS) 2018-2024 Service Manual / Brake System / Brake System / Brake Booster Components and components location

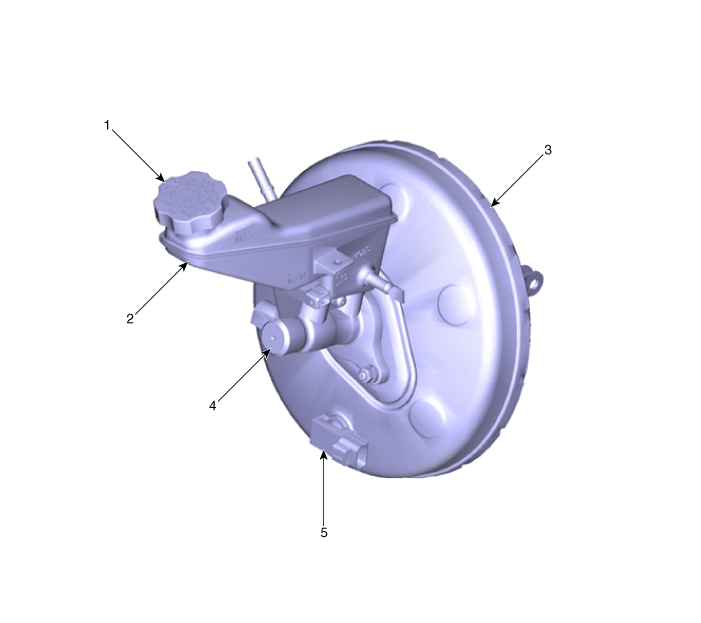

Components

1. Reservoir cap
2. Reservoir
3. Brake booster

4. Master cylinder
5. Booster presure senser

Repair procedures

Operation and Leakage Check Check all of the following items : Component Procedure Brake Booster (A) Check brake operation by ...

Brake Booster Repair procedures

Brake Booster Operating Test For simple checking of the brake booster operation, carry out the following tests. 1. Run the engine for one or two minutes, an ...
