Hyundai Kona: Driveshaft Assembly / Dynamic Damper Components and components location

Hyundai Kona (OS) 2018-2025 Service Manual / Driveshaft and axle (2WD-FF) / Driveshaft Assembly / Dynamic Damper Components and components location

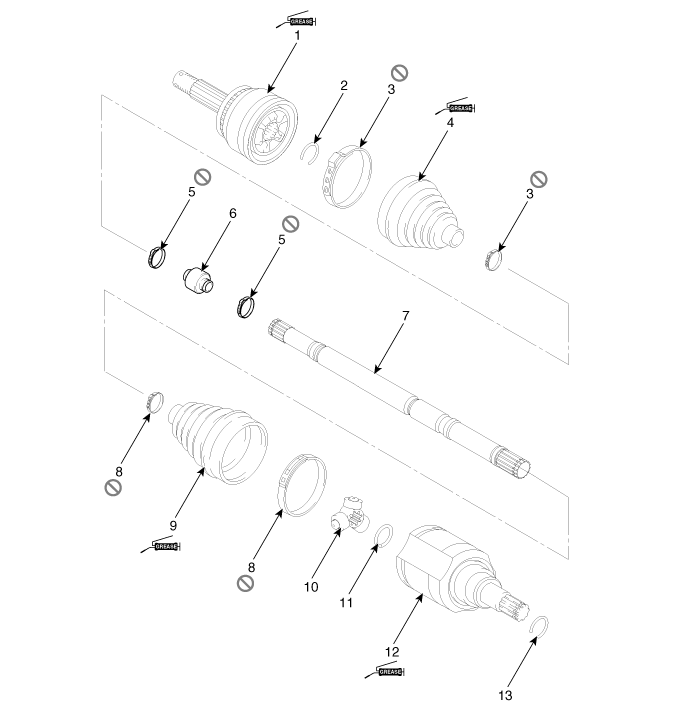

Components

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot

5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band

9. TJ boot
10. Spider assembly
11. Retainer ring
12. TJ case

13. Housing circlip

TJ Joint Repair procedures

Disassembly • Special grease must be applied to the driveshaft joint. Do not s ...

Dynamic Damper Repair procedures

Removal 1. Remove the front driveshaft. (Refer to Driveshaft Assembly - "Front Driveshaft") 2. Remove the TJ joint assem ...
