Hyundai Kona: Driveshaft Assembly / Front Driveshaft Components and components location
Hyundai Kona (OS) 2018-2026 Service Manual / Driveshaft and axle (2WD-FF) / Driveshaft Assembly / Front Driveshaft Components and components location
| Components |

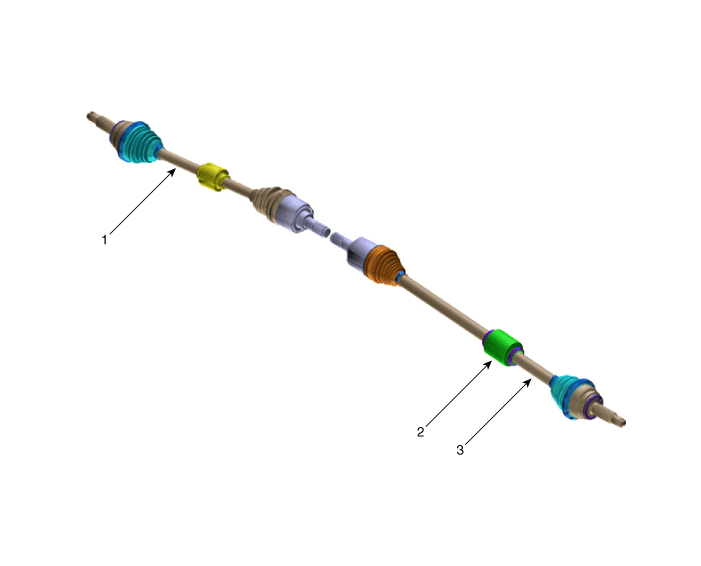

[Kappa 1.0 T-GDI]
| 1. Driveshaft (LH) 2. Dynamic damper |
3. Driveshaft (RH) |

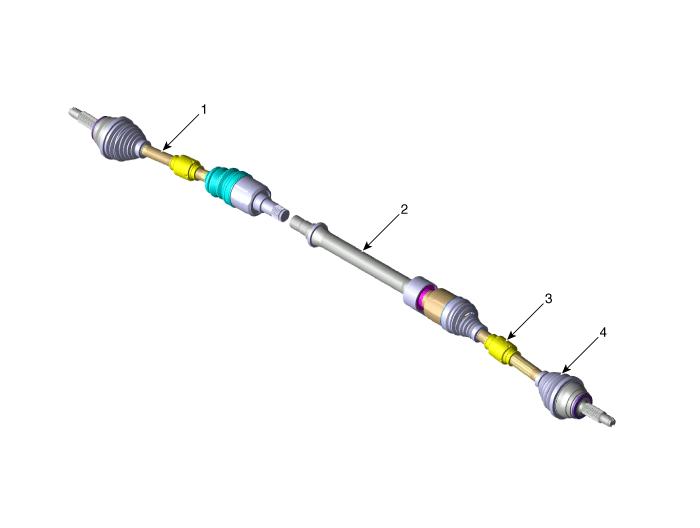

[GAMMA 1.6 T-GDI, Nu 2.0 MPI]
| 1. Driveshaft (LH) 2. Inner shaft bearing brcket |
3. Dynamic damper 4. Driveshaft (RH) |
Front Driveshaft Repair procedures
Removal
[Gamma 1.6 T-GDI, Nu 2.0 MPI]
1.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
2.
...
