Hyundai Kona: Timing System / Idler Components and components location

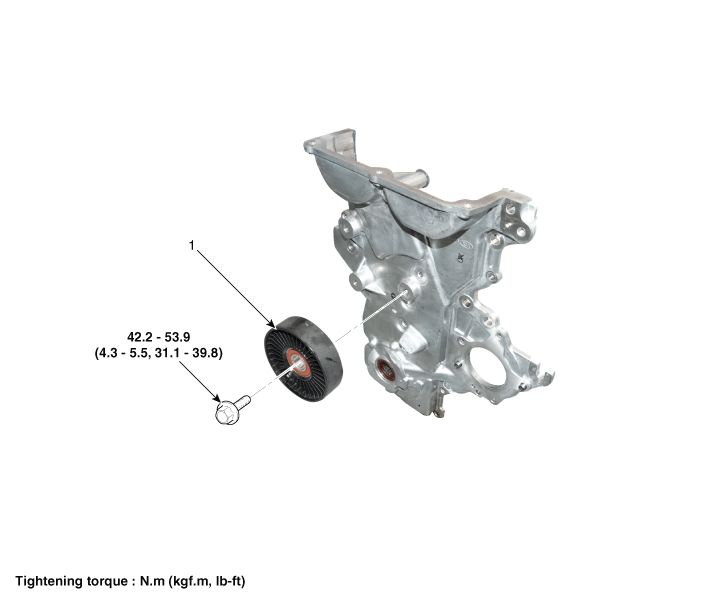

Components

1. Idler

Drive Belt Repair procedures
Removal 1. Disconnect the battery negative terminal. 2. Loosen the alternator tension mounting bolts (A). 3. L ...

Idler Repair procedures
Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Dreve Belt") 2. Remove the idler (A). ...
