Hyundai Kona: Ignition System / Ignition Coil Schematic diagrams

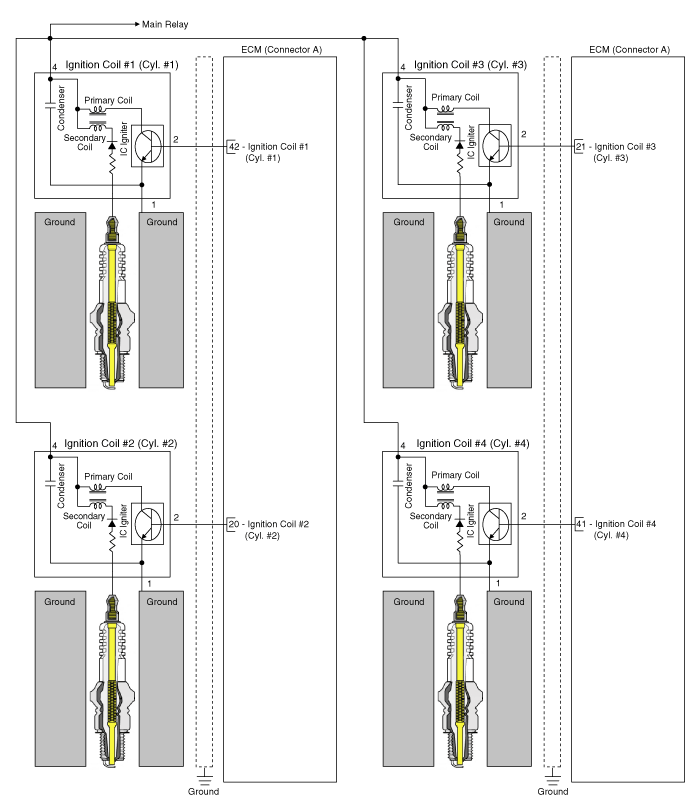

Circuit Diagram

Ignition Coil Description and operation
Description An ignition coil is an induction coil in an engine's ignition system which transforms the battery's low voltage to the high voltage needed to create an electric ...

Ignition Coil Repair procedures
Removal 1. Turn ignition switch OFF and disconnect the battery negative (-) terminal. 2. Remove the engine cover. 3. ...
