Removal

1.	Turn ignition switch OFF and disconnect the battery negative (-) terminal.

2.	Remove the engine cover.

Disconnect the ignition coil connector (A).

•	When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

4.	Remove the ignition coil (A) after loosening the mounting bolt.

Installation

Install in the reverse order of removal.

Ignition coil mounting bolt :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib.ft)

Inspection

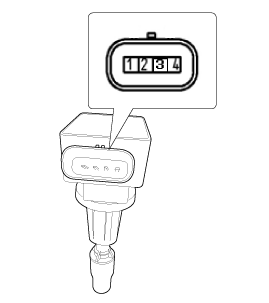

Measure the primary coil resistance between terminal 2 and 4.

Standard value : 0.56Ω ± 10% [20°C (68°F)]

Ignition Coil Schematic diagrams

Circuit Diagram ...

Spark Plug Specifications

Specification Item Specification Type SILZKR8E8G Gap 0.7 - 0.8 mm (0.0275 - 0.0314 in.) ...
