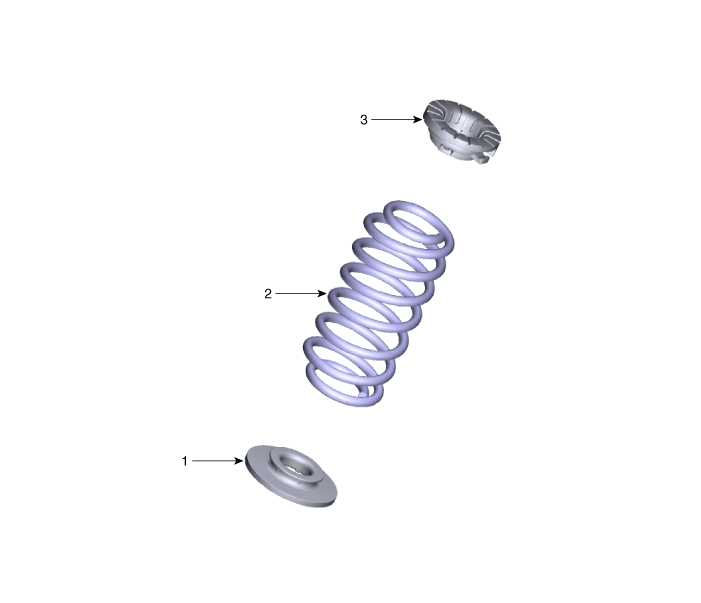

Components

1. Spring lower pad
2. Coil spring
3. Spring upper pad

Rear Shock Absorber Repair procedures
Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the rear wheel and ...

Rear Coil Spring Repair procedures
Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the rear wheel and ...
