Hyundai Kona: Rear Driveshaft Assembly / Rear Driveshaft Components and components location

Hyundai Kona (OS) 2018-2026 Service Manual / Driveshaft and axle (2WD-FF) / Rear Driveshaft Assembly / Rear Driveshaft Components and components location

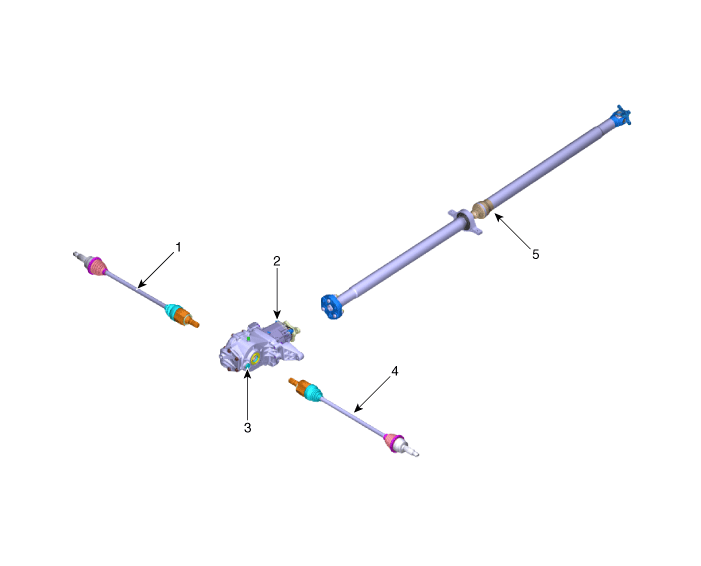

Components

1. Rear drive shaft (LH)
2. Coupling assembly
3. Rear differential carrier assembly

4. Rear drive shaft (RH)
5. Propeller shaft assembly
