Hyundai Kona: Seat Electrical / Seat Heater Switch Schematic diagrams

Circuit Diagram

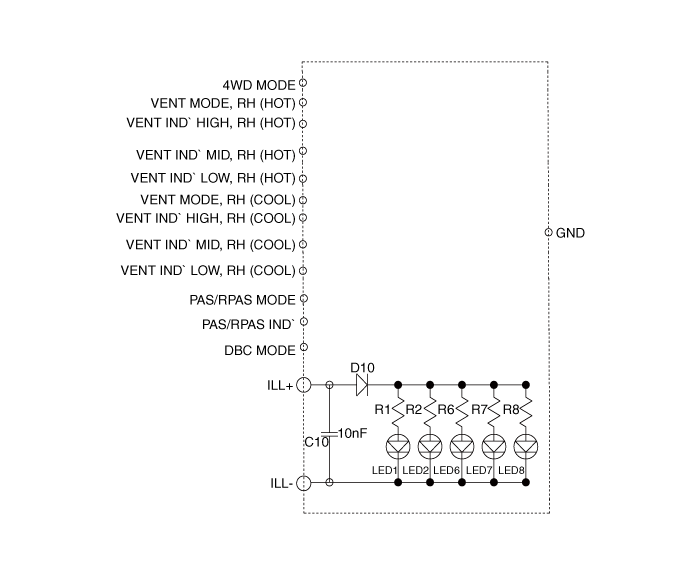

[Front Seat Heater Switch (Driver)]

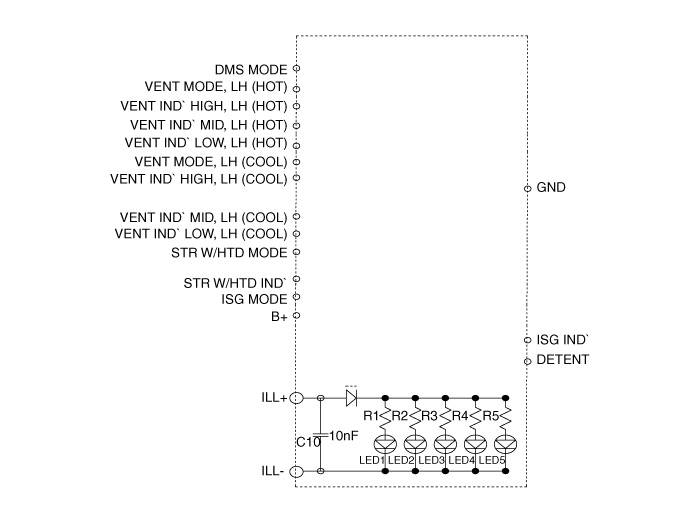

[Front Seat Heater Switch (Passenger)]

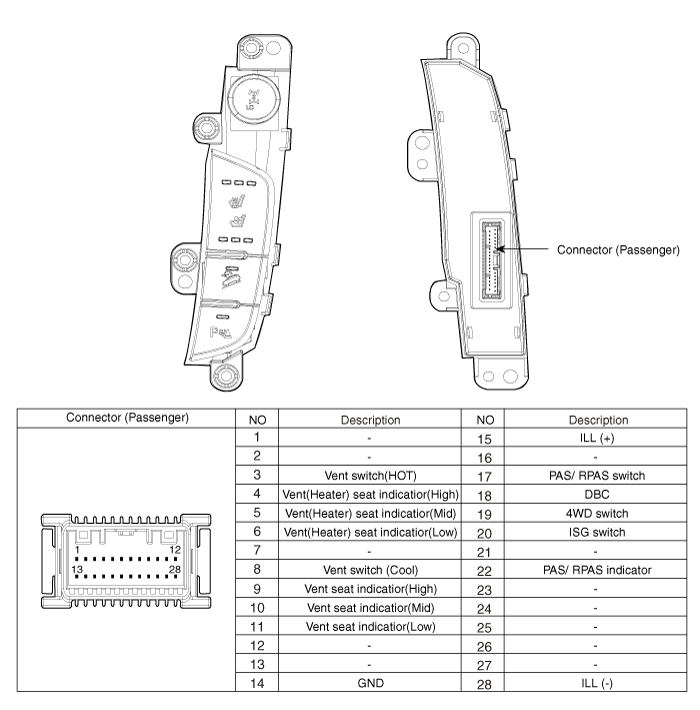

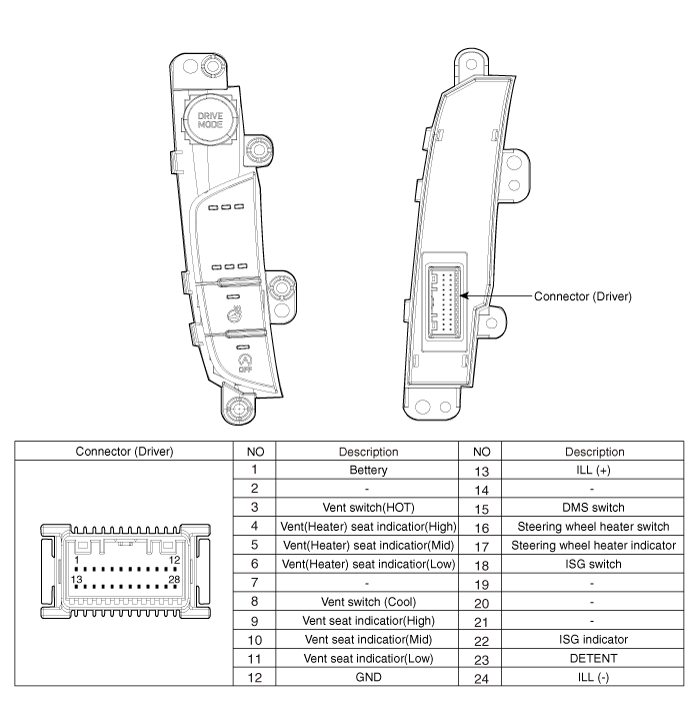

Seat Heater Switch Components and components location
Components [Front Seat] ...

Seat Heater Switch Repair procedures
Removal [Front Seat] 1. Disconnect the negative (-) battery terminal. 2. Remove the floor console assembly. ...
