Hyundai Kona: Charging System / Alternator Components and components location

Hyundai Kona (OS) 2018-2020 Service Manual / Engine Electrical System / Charging System / Alternator Components and components location

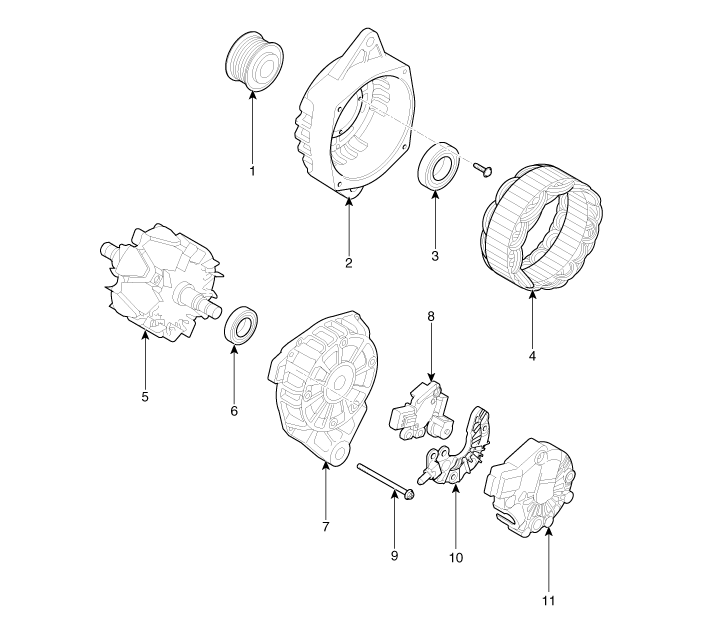

Components

1. OAP (Overrunning Alternator Pulley)
2. Front bracket
3. Front bearing
4. Stator
5. Rotor
6. Rear Bearing
7. Rear Bracket
8. Brush Holder Assembly
9. Through Bolt
10. Rectifier Assembly
11. Rear Cover

Alternator Description and operation
Description The Alternator has eight built-in diodes, each rectifying AC current to DC current. Therefore, DC current appears at alternator "B" terminal. In addition, ...

Alternator Repair procedures
Removal 1. Turn ignition switch OFF and disconnect the battery negative (-) terminal. 2. Disconnect the air compressor connector (A) and th ...
