Hyundai Kona: Installing a Child Restraint System (CRS) / Securing a Child Restraint System with a lap/shoulder belt

When not using the ISOFIX system, all Child Restraint Systems must be secured to a rear seat with the lap part of a lap/shoulder belt.

Installing a Child Restraint System with a lap/shoulder belt

To install a Child Restraint System on the rear seats, do the following:

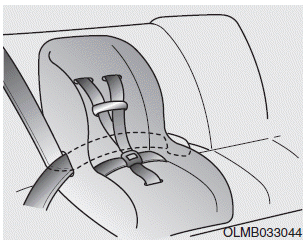

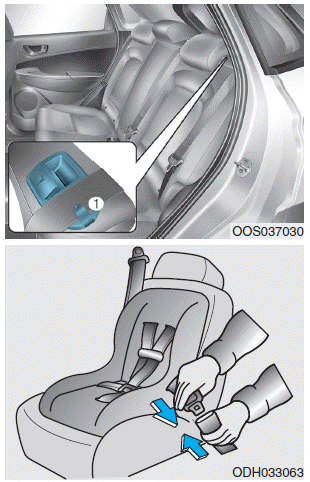

1. Place the Child Restraint System on a rear seat and route the lap/ shoulder belt around or through the Child Restraint System, following the Child Restraint System manufacturer’s instructions. Make sure the seat belt webbing is not twisted. Make sure to insert the belt into the guide(1).

2. Fasten the lap/shoulder belt latch into the buckle. Listen for the distinct “click” sound.

Information

Position the release button so that it is easy to access in case of an emergency.

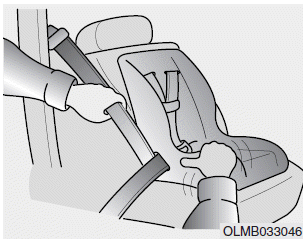

3. Remove as much slack from the belt as possible by pushing down on the Child Restraint System while feeding the shoulder belt back into the retractor.

4. Push and pull on the Child Restraint System to confirm that the seat belt is holding it firmly in place. If your Child Restraint System manufacturer recommends the use of a top-tether with the lap/shoulder belt, see page 2-38.

To remove the Child Restraint System, press the release button on the buckle and then pull the lap/shoulder belt out of the Child Restraint System and allow the seat belt to retract fully.

Suitability of each seating position for ISOFIX Child Restraint Systems according to ECE regulations
IUF = suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass group. IL = suitable for particular ISOFIX child restraints systems (CRS) given in the ...

Suitability of each seating position for "universal" category belted Child Restraint Systems according to ECE regulations
U = Suitable for "universal" category Child Restraint Systems approved for use in this mass group. U* = Suitable for "universal" category Child Restraint Systems approved for use in this mass group ...
